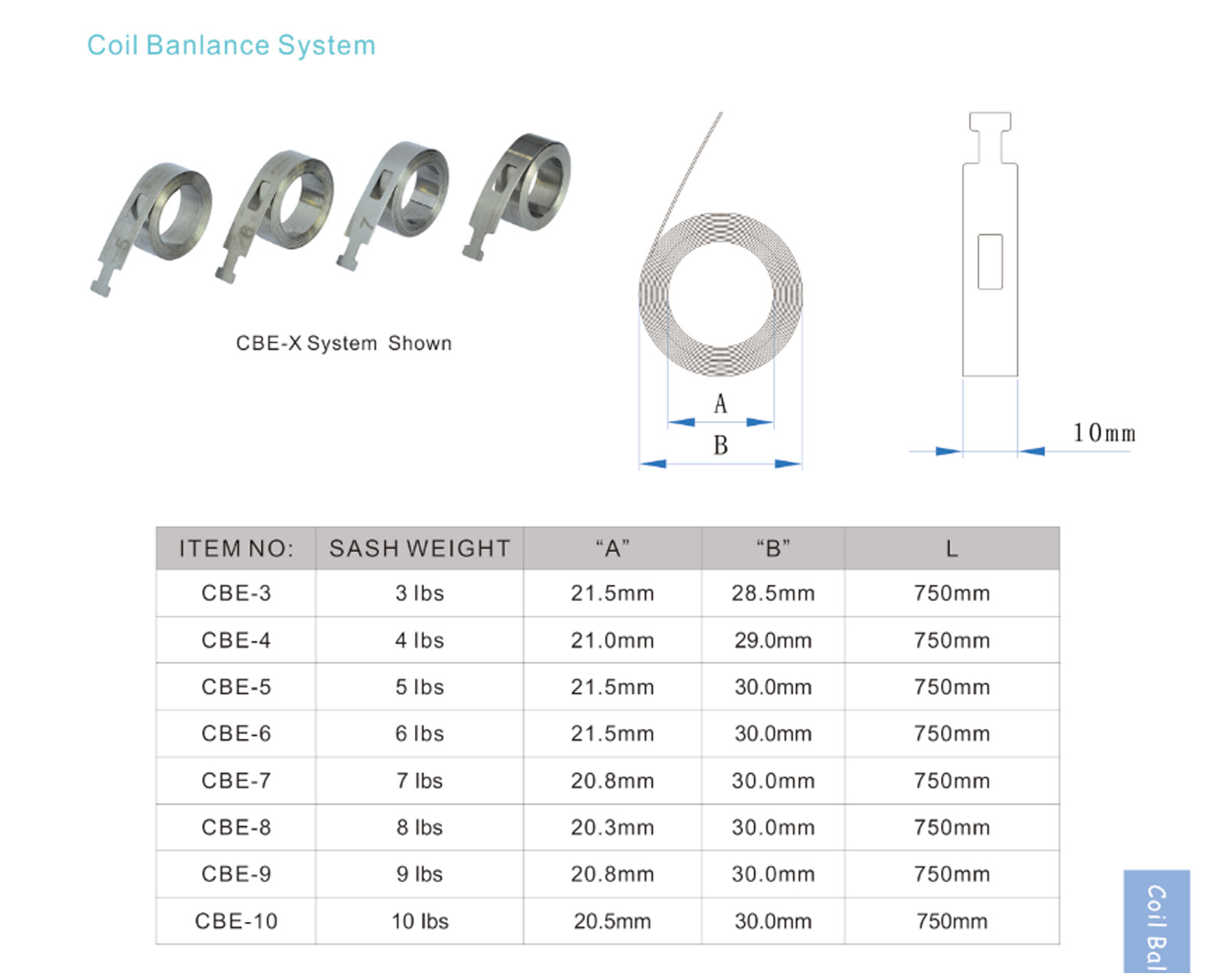

CBE-05&06&07&08
Technical documentation and download
7.5″Single Arm Operator
Ordering details
Part Number
Description
Box Qty.
MEAS.
G.W./KGS
ELITE-01L
DUAL ARM OPER.LH
20
34.5*34*31.5
12.7
ELITE-01R
DUAL ARM OPER.RH
20
34.5*34*31.5
12.7
ELITE-01L SS
DUAL ARM OPER. LH STAINLESS STEEL
20
34.5*34*31.5
12.7
ELITE-01R SS
DUAL ARM OPER. RH STAINLESS STEEL
20
34.5*34*31.5
12.7
Accessories
Part Number
Description
Box Qty.
MEAS.
G.W./KGS
FH-03A
OPER. HANDLE/COVER LH
100
29.6*28.6*23
11.2
ELITE-01-3 BG OR
ELITE-01-3 SS
DUAL ARM TRACK/SLIDE OR
304 stainless steel DUAL ARM TRACK/SLIDE
100
38*15*16.5
10.8
CS-04R OR CS-04R SS
CASEMENT STUD BRACKET RH (SS PIN) OR CASEMENT STUD BRACKET RH (SS PIN AND BODY)
400
28*19*16
14.7
